DropWheel Black Edition Ultra Low Van Transport Wheel
✅ THIS LISTING IS FOR OUR MOST COMMON DROPWHEEL VERSION
- Suitable for bikes running axles up to 22mm diameter
- Supplied with a 135mm spacer
- Designed for many modern KTM / Husqvarna enduro and motocross bike
- Check your measurements or drop us a message for guidance.
If you need a different axle size or spacer width, please feel very welcome to message and see our Custom Fitment DropWheel listing.
Our custom service includes building wheels suitable for 17mm, 20mm, 25mm and 26mm axle options.
🚐 WHAT DOES DROPWHEEL DO?

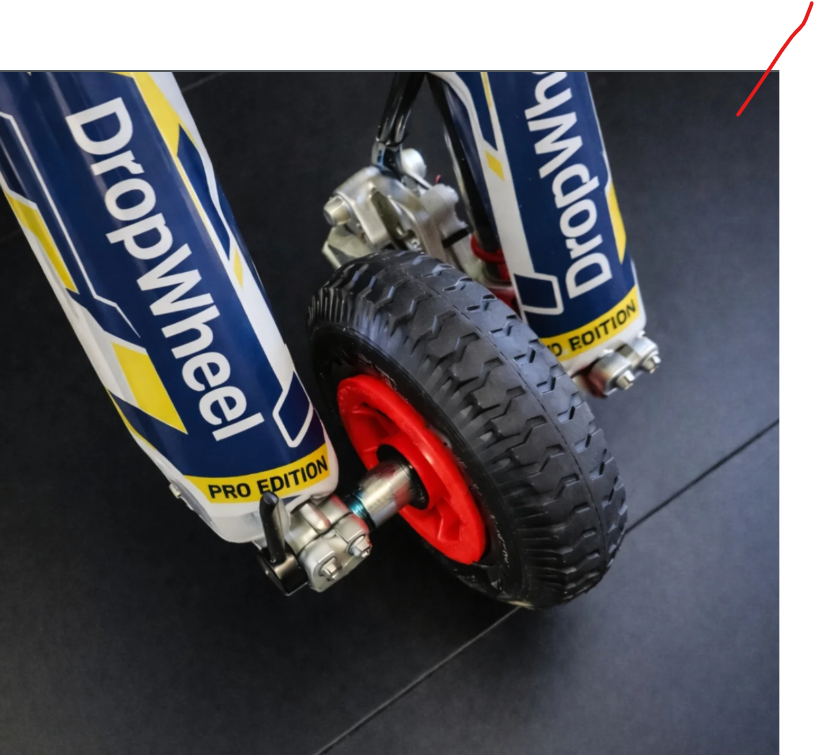

DropWheel replaces your front wheel when loading or transporting your bike.
It helps lower the front end of the bike so it can fit into vans, campervans and low-roof vehicles.
It is especially useful when handlebar height is the problem.
⭐ WHY IS DROPWHEEL DIFFERENT?
Most alternative loading wheels use larger adapted wheels like wheelbarrow wheels.
They can be quite large, so they often do not reduce the bike height enough.
DropWheel is designed around the smallest practical rolling wheel we can use while still clearing the front brake caliper.
Unlike solid plastic alternatives, DropWheel uses a small pneumatic tyre, giving smoother rolling and better grip on ramps, van floors and uneven ground.
The aim is simple:
Get the front of the bike as low as possible while still being able to roll it.
✅ KEY FEATURES
• Black Edition DropWheel
• 22mm axle version
• 135mm spacer included
• Ultra-low design for low-roof vans
• Compact 220mm pneumatic wheel
• Better rolling grip than solid plastic wheels
• Designed for enduro and motocross bikes
• Helps reduce handlebar / front-end height
• Rolls smoothly under load
• Simple, strong and easy to use
🔧 WILL IT FIT MY BIKE?
This version is designed for bikes with:
• 22mm front axle
• Spacer requirement close to 135mm
It was originally developed around a Husqvarna FE350.
Other Customer-confirmed fits now include:
- KTM SX-F 350 2025
- Kawasaki KX-F 250 2011
- Husqvarna FE 350 2025
- Husqvarna FE 250 2021
- Husqvarna TE 300 2026
- Honda CRF 450 2017
- Stark Varg
- Yamaha WR 250 2005
Fitment can vary between bike models, years and front brake setups.
WILL IT FIT MY VAN?
A simple way to check:
-
Measure from the bottom of your fork leg to the highest point on your bike, usually the handlebars.
-
Then add around 11cm for the DropWheel radius.
This gives you a rough idea of the minimum van height needed.

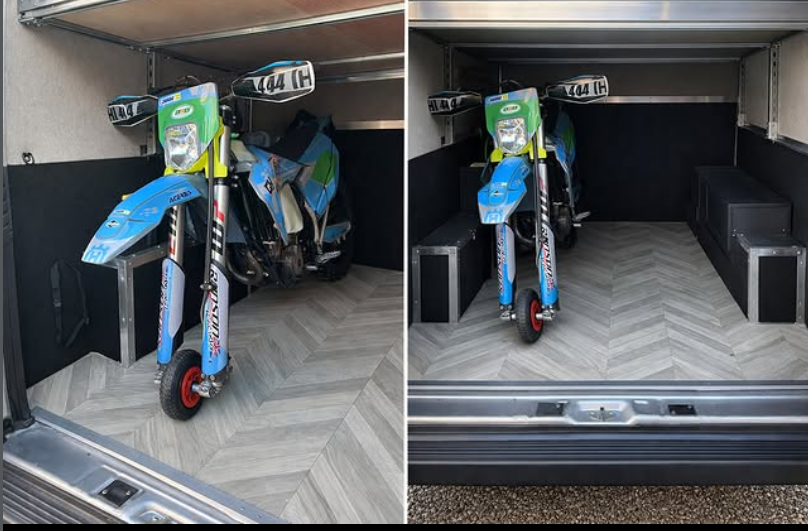

On our reference setup, loading has been achieved in vans with around 108cm internal roof height.
This can vary depending on the bike, suspension, handlebars, tyres and van layout.
SPECIFICATION
• Wheel diameter: 220mm
• Tyre width: approx. 3.3 inch / 85mm
• Axle size: 22mm
• Spacer supplied: 135mm
• Colour: Black Edition
• Spacer included: Yes
⚠️ IMPORTANT SAFETY NOTES
• For van loading and transport use only
• Not for riding
• Not for towing
• Do not use on the road
• Remove before riding the bike
